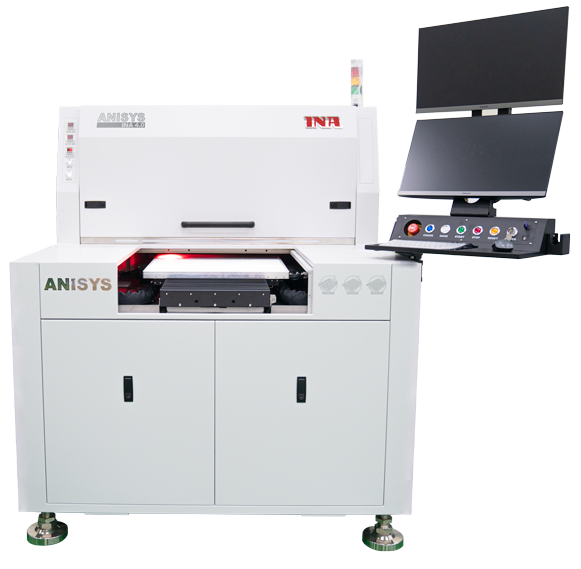

INA 4.0 / INA 5.0

UV Laser Drilling & Cutting System

Delivers stable, high-precision laser processing across diverse environments through a user-centric interface and independent control architecture.

Next-Generation Laser Processing Powered by Precision Control

High-spec laser drilling model

Advanced motion control features

Independent control of laser frequency and output power

High-power motors enable fast process speeds

FEM-based structural design

Integrated material handling for maximum productivity

INA 5.0 / INA 4.0 SPECIFICATIONS

	INA 5.0	INA 4.0
Laser Type	UV ns Laser / 355nm (SP Talon 30W)	UV ps Laser / 355nm (SP Talon 20W)
Avg. Output Power	25W @ 100kHz at work piece	18W @ 100kHz at work piece
Laser Frequency	100 kHz ~ 500kHz
Pass Level	980mm ±10mm
Scan Scope & Method	Advanced 2D on the Fly (IFOV)
Cutting Accuracy	±10μm
PTH Drilling Dia	25 μm @ min.
BVH Drilling Dia	35 μm @ min.
X-Y Stage	Split Stage, Coreless Linear Motor
Loading & Unloading	Operating Manual (Customizing: S2S, R2R)
Work Table Size	530 x 630 mm²
Vision	Optics Vision Align
Emergency Button	Front) Left, Right (2EA)
Electric Power	220V, 3-phase, 50Hz / 60Hz

For any inquiries, please contact AnimotionTech.
